Gayflower: Spring 2025 Plan

Reference Photo:



0. General conditions

  1. Install plywood on rear wall to support the plumbing stack for the pump outlet.
  2. Get a big tool box and parts box to organize all our plumbing tools and parts

1. IBC Tote Replacement

Replace all seven totes with new ones and completely replace all plumbing connecting them.

Design considerations
  • Use flexible hoses instead of PVC with glue, for easy replacement, more flexibity, and less likely to break
  • Pump requires 1" diameter inflow. To accomplish this the nearest IBC tote will be connected with 1" PEX-B. All the other totes can be connect to each other with 3/4" hose just to allow them to balance with each other.
  • Shutoff valves everywhere for safety and quick repairs

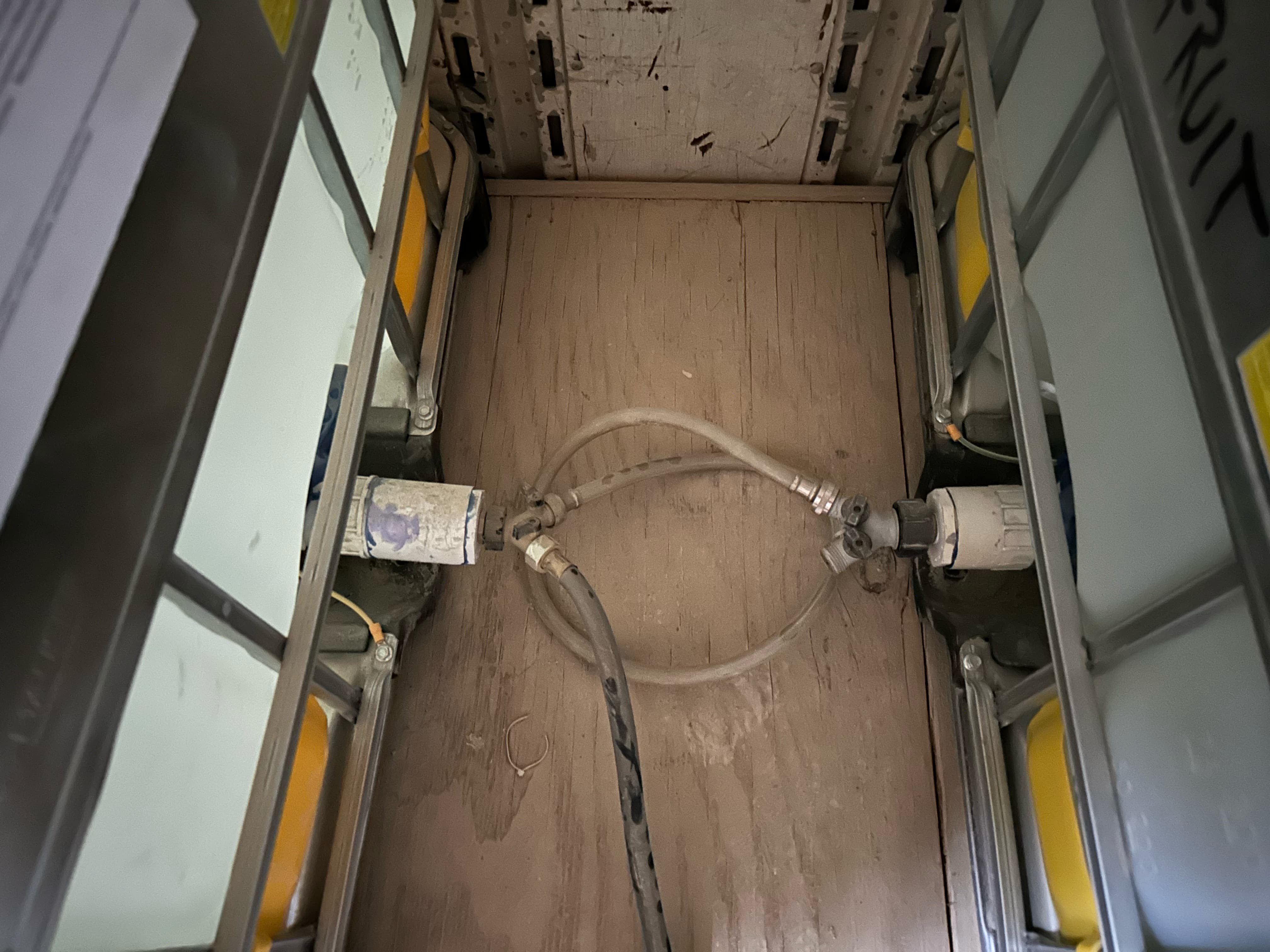

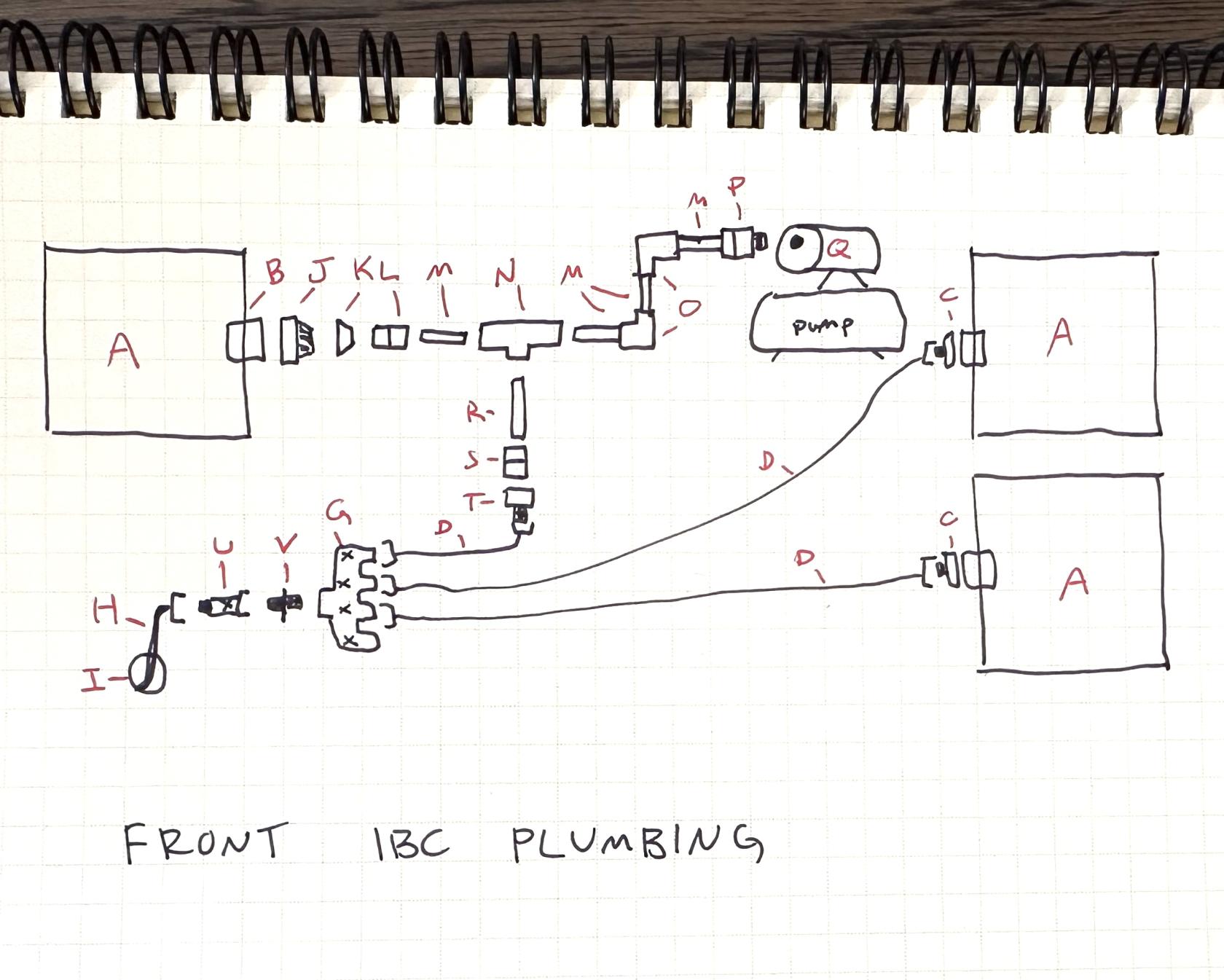

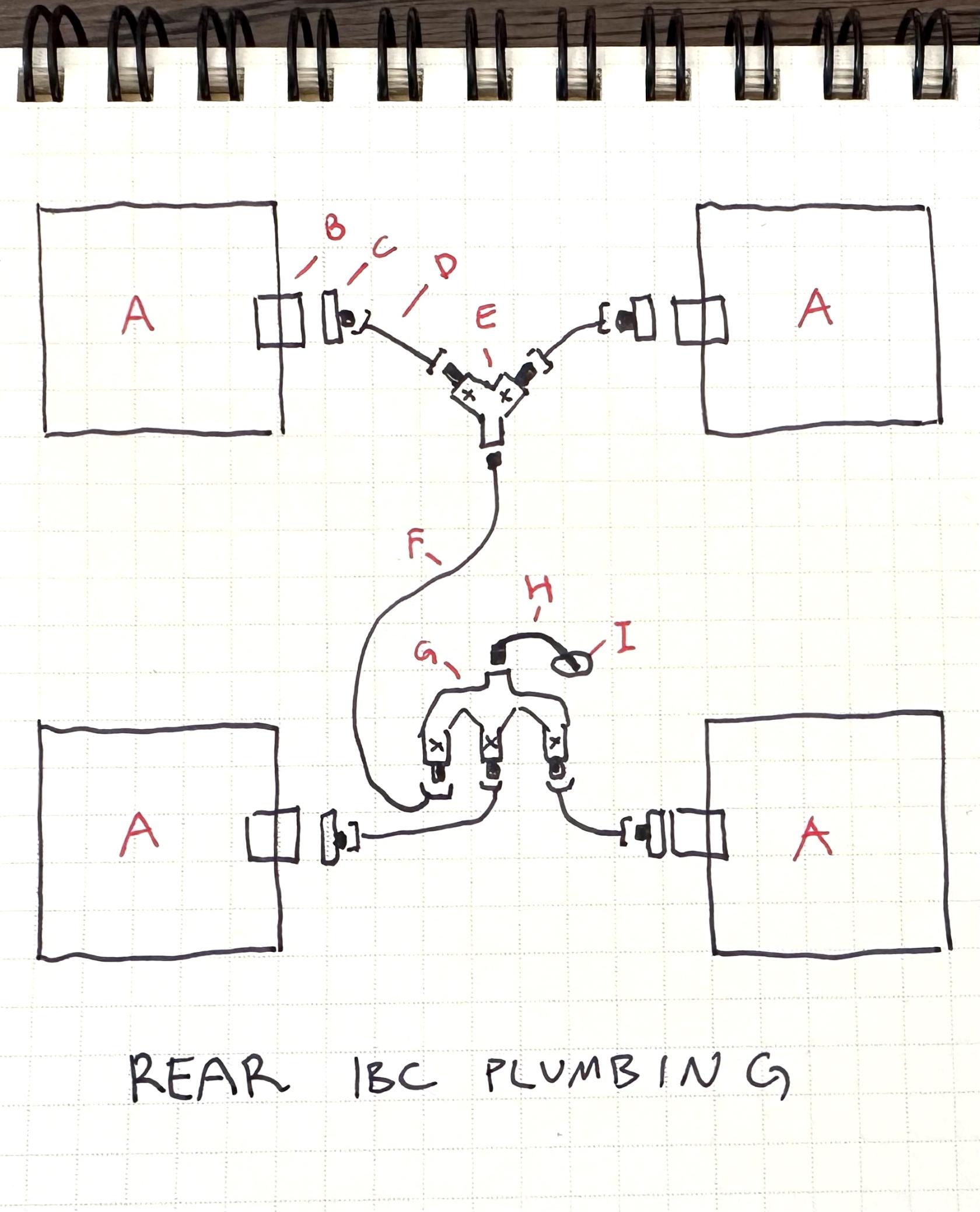

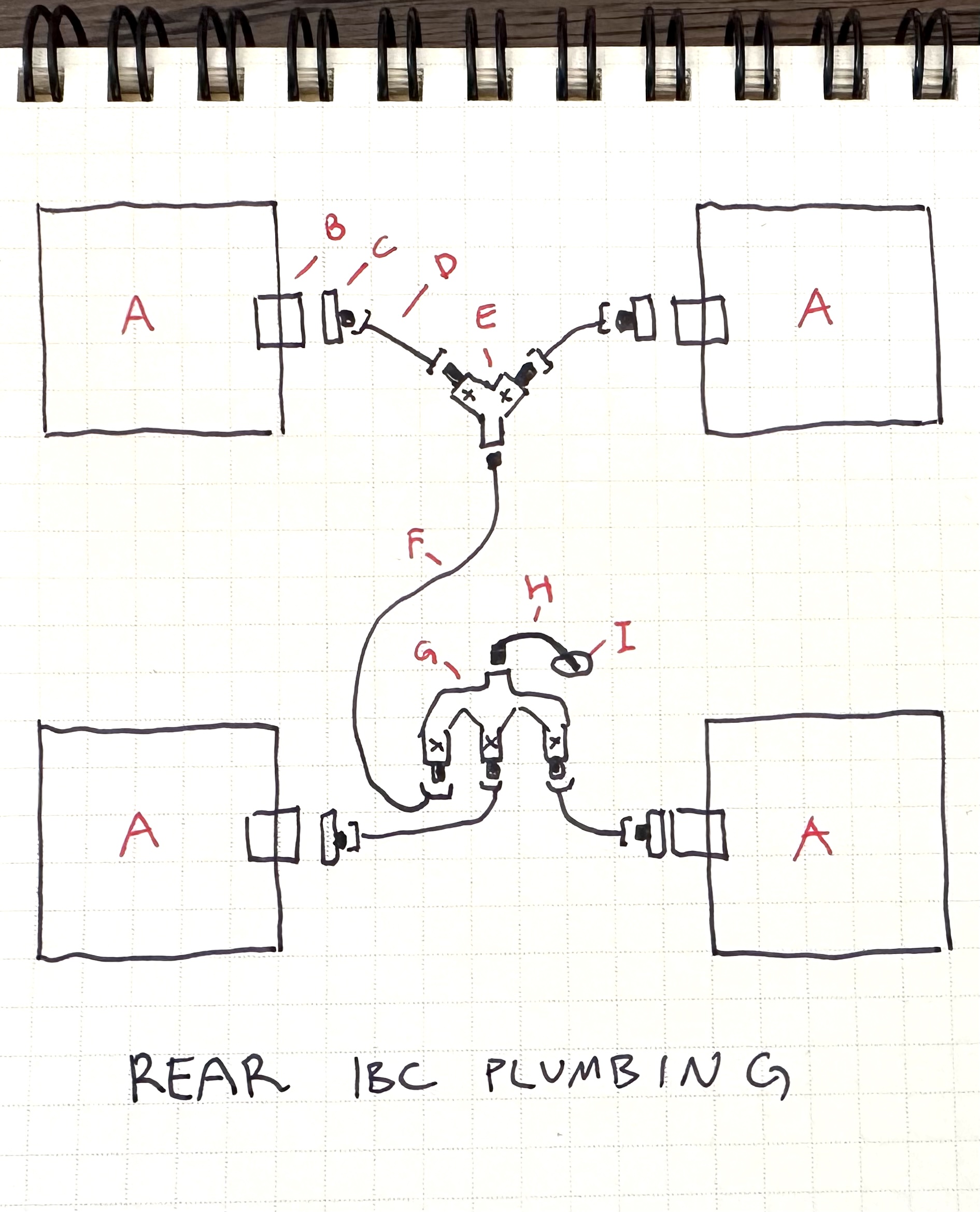

New plumbing configuration


A IBC tote
B 2" Camlock valve, preinstalled on tote
C 2" Camlock to 3/4" Male Garden Hose adapter
D 2' long 3/4" Female to Female Garden Hose Extender (get some 1' as well to minimize slop)
E

3/4" Garden Hose splitter with valves (F - M - M)

F 5' long 3/4" Garden Hose (M - F)
G

3/4" Garden Hose three way splitter with valves (F - M - M - M)

H

50' 3/4" Garden Hose (M - F)

I

Hole in floor

J

2" Female Camlock to 2" Male NPT Adapter, Stainless Steel (example)

K

2" Female NPT to 1" Female NPT

L

1" Male NPT to 1" Sharkbite

M

1" PEX-B

N

1" - 1" - 3/4" Reducing Tee (Sharkbite)

O

1" Sharkbite Elbows

P

1" Sharkbite to 1" Male NPT

Q

Pump, with 1" Female NPT inlet

R

3/4" PEX-B

S

3/4" Sharkbite to 3/4" Male NPT

T

3/4" Female NPT to 3/4" Male Garden Hose

U

3/4" Garden Hose Shutoff Valve (M-F)

V

3/4" Garden Hose Male to Male Coupler

The pump requires 1" diameter input, so it draws from the nearest tote using 1" PEX-B (put together with sharkbite fittings). That tote, and the other six, are all interconnected using 3/4" hoses, which allow the water to seek a level between them.


2. Evaporative Cooler Supply Rerouting

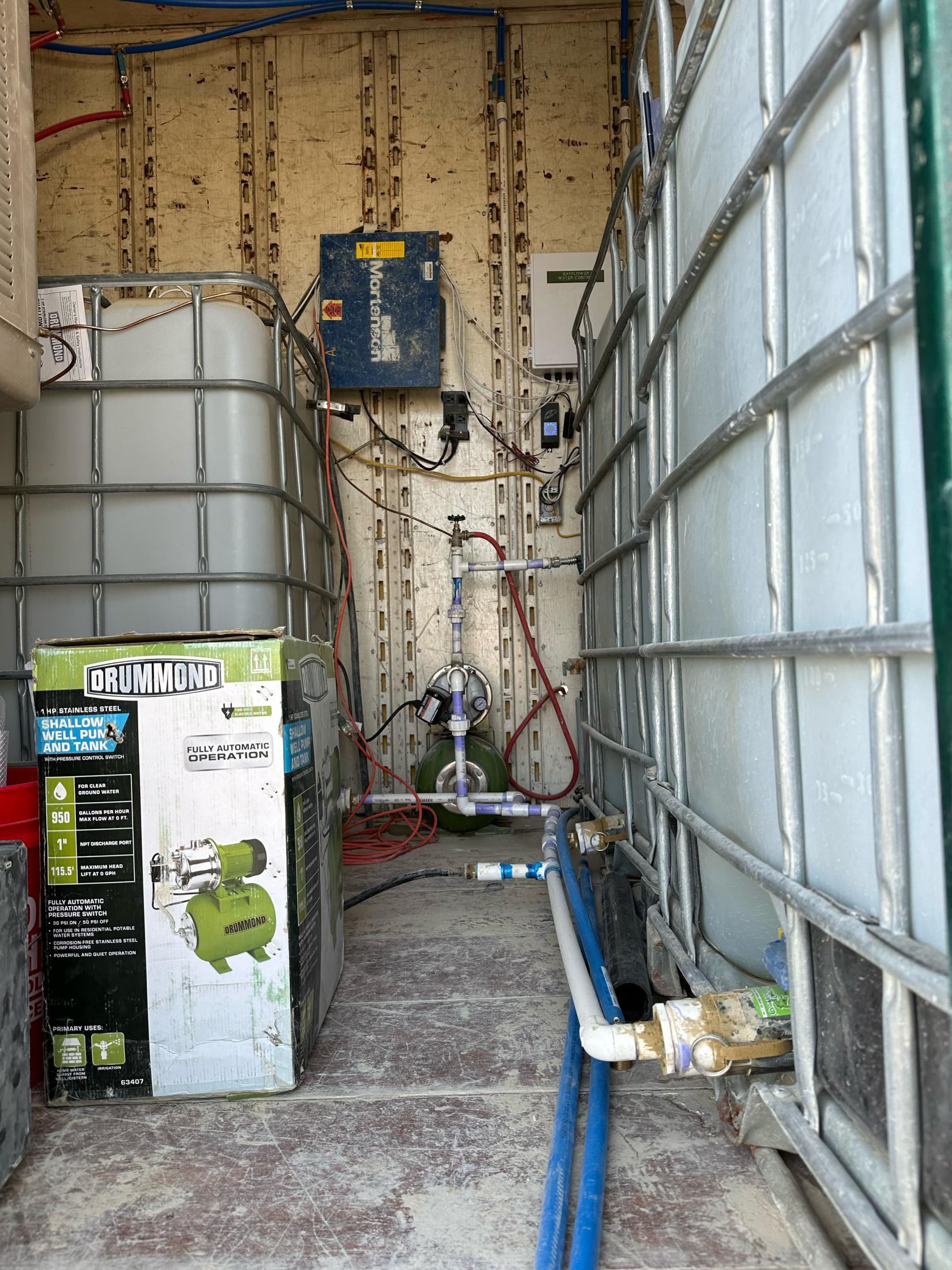

The water supply line for the evaporative cooler should be rerouted so it does not interfere with that IBC tote. Also, it might be responsible for the leak at the top of the pump.


    3. Rework plumbing above the pump

    The main goal here is to make something that allows for quickly swapping out a failed pump, and eliminate the PVC+glue that is prone to leaks.

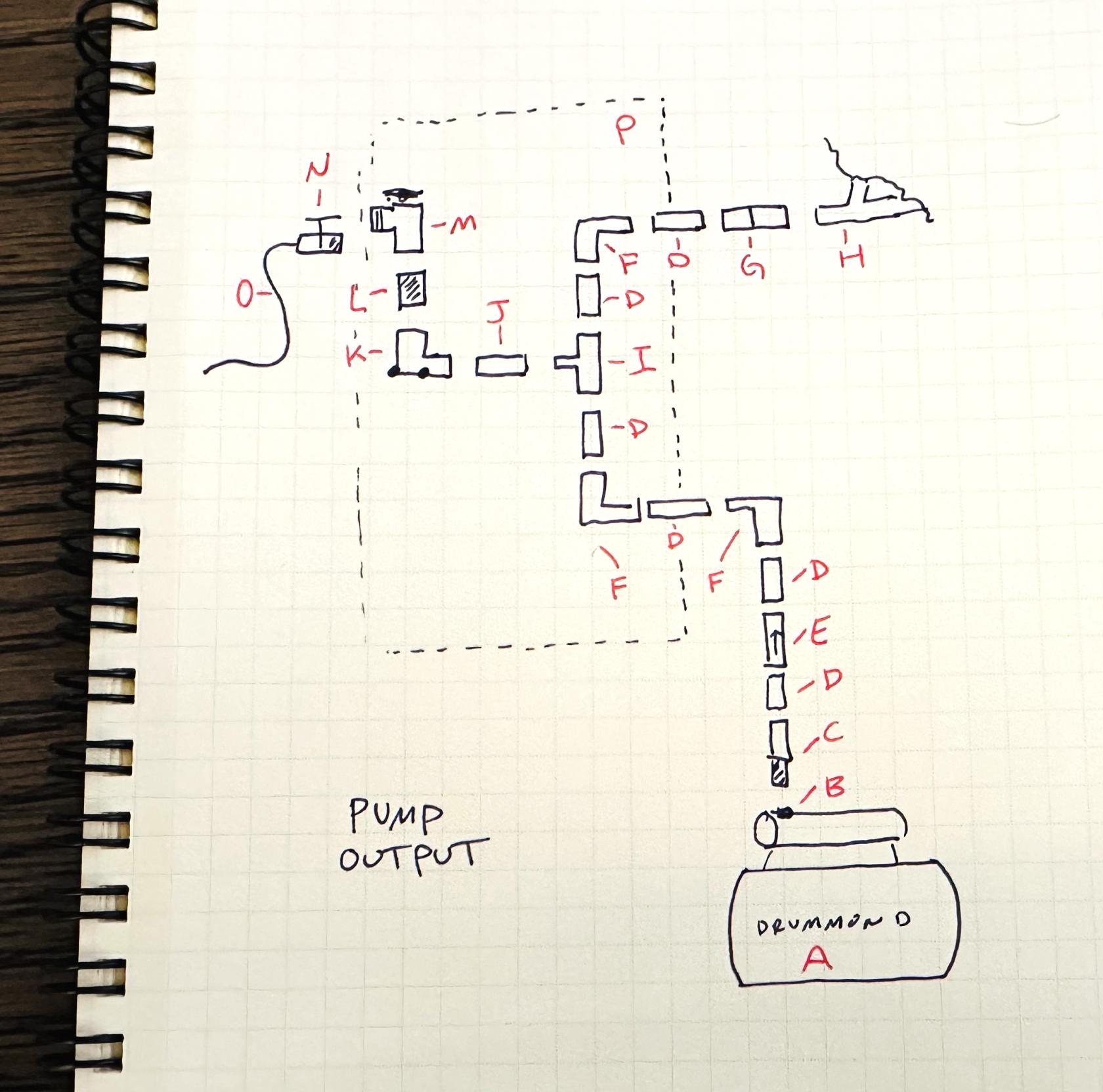

    A Existing DRUMMOND 1 HP Stainless Steel Shallow Well Pump and Tank with Pressure Control Switch - 950 GPH
    B 1" Female NPT output
    C 1" Male NPT to 1" Sharkbite U140LF
    D 1" PEX-B Pipe
    E Sharkbite 1" Check Valve (U2020-0000LF)

    Provide Sharkbite disconnect tongs (U715) for winterizing.
    F 1" Sharkbite Elbow
    G

    1" Sharkbite PVC Fittings

    Also provide different connections because I don't know what is over there

    H

    Existing water line, splitting to cold water and hot water

    I

    1" - 1" - 3/4" Reducing Tee (Sharkbite)

    J

    3/4" PEX-B Pipe

    K

    Brass Push Drop-Ear Elbow (3/4" Sharkbite to 3/4" FNPT) (U340LF)
    Can be screwed onto plywood so that FNPT is facing out

    L

    3/4" Male NPT to 3/4" Male Garden Hose (amazon)

    M

    3/4 in. Evaporative Cooler FGH x MGH Sill Cock

    N

    1/4 in. x 1/8 in. Evaporative Cooler Angle Needle Valve

    O

    1/4 in. Evaporative Cooler Copper Tube leading to swamp cooler

    P

    This section to be mounted on plywood
    Use some 1" and 3/4" pipe hangers like this to make it strong

    Consolidated Shopping List

    This list has been added to the manifest on the Reno Warehouse (2025) page.

    Qty Item Vendor

    Notes

    4 1" Male NPT to 1" Sharkbite Sharkbite U140LF
    10' 1" PEX-B Pipe - White Home Depot
    5' 3/4" PEX-B Pipe - White Home Depot
    2 Sharkbite 1" Check Valve Sharkbite U2020-0000LF
    1 Sharkbite Disconnect Tongs 1" Sharkbite U715

    1 Sharkbite Disconnect Tongs 3/4" Sharkbite U713

    7 Sharkbite 1" Elbow Sharkbite U260LF
    3 Sharkbite 1" Coupling
    Sharkbite U020LF

    1 Sharkbite PVC Transition (1") Sharkbite UIP4020

    1 Sharkbite PVC Transition (3/4") Sharkbite UIP4016

    1 Sharkbite 1" to 3/4" Reducing Coupling Sharkbite U060LF

    3 Sharkbite 1" - 1" - 3/4" Reducing Tee Sharkbite U416LF
    1 Sharkbite Brass Push Drop Ear Elbow
    (3/4" Sharkbite to 3/4" FNPT)
    Sharkbite U340LF

    1 3/4" Male NPT to 3/4" Male Garden Hose Amazon comes as a two pack to provide spare
    12 1" Pipe Hangers Home Depot 12 total needed. Check quantity per pack, don't order 12 packs!
    10 3/4" Pipe Hangers Home Depot 10 total needed. Check quantity per pack, don't order 10 packs!
    1 1/4 in. x 1/8 in. Evaporative Cooler Angle Needle Valve Home Depot (link)
    50 feet 1/4 in. Evaporative Cooler Copper Tube Home Depot (link)
    1 3/4 in. Evaporative Cooler FGH x MGH Sill Cock Home Depot (link)
    1 1/4 in. x 1/8 in. Evaporative Cooler CC and MPT Male Union Home Depot (link) spare part
    1 1/4 in. Compression Brass Nut Fitting Home Depot (link) spare part
    1 Mini Copper Tubing Cutter Home Depot (link) tool
    20 Copper tube straps Home Depot (link) need 20 total, not 20 packs
    7

    Rebottled or new IBC totes

    330 gallon
    2" Camlock Valve

    The Cary Company
    EST104097
    To ship to Empire
    7 2" Camlock to 3/4" Male Garden Hose The Cary Company or
    Amazon

    2

    3/4" Female - Female Garden Hose

    5' Length

    Amazon
    3 3/4" Female - Female Garden Hose
    2' Length
    Amazon
    3 3/4" Female - Female Garden Hose
    1' Length
    Amazon
    2

    3/4" Male - Female Garden Hose

    6' Length

    Amazon
    1 3/4" Garden Hose Y-Splitter With Valves Amazon
    2 3/4" Garden Hose Three way splitter With Valves Amazon
    2 3/4" Garden Hose, 50' Amazon
    2 2" Camlock to 2" Male NPT Adapter The Cary Company
    or
    Amazon (two included)

    2 2" Female NPT to 1" Female NPT Reducer Amazon
    10' 1" PEX-B - White Home Depot
    2' 3/4" PEX-B - White Home Depot
    2 3/4" Sharkbite to 3/4" Male NPT Sharkbite U134LF

    2 3/4" Female NPT to 3/4" Male Garden Hose Amazon
    2 Garden hose shutoff valve
    3/4" male to 3/4" female
    Amazon
    1 set Garden Hose Couplers (M-M and F-F) Amazon
    1 3/4" Plywood
    24" x 48" panels
    Home Depot in Reno

    They sell precut 24x48 pieces (or buy 4'x8' pieces and cut in four)



    Consider buying an extra 14 to replace crappy shelves in Empire Fort

    20 Wood-to-metal self-driving screws
    #10 diameter
    1 1/2"

    Home Depot in Reno
    (link)

    We might have them in the tool fort

    1 Teflon Tape Home Depot


    1 Tru-Blu Pipe Thread Sealant with PTFE
    Home Depot


    1 PEX-B cutter

    I might already have this in the LED Lab

    1 2" Ratcheting PVC cutter Home Depot


    1 Assortment of wood screws Amazon


    1 Storage packout on wheels for all plumbing parts and tools Home Depot
    Milwaukee Packout
    probably best to buy this at Home Depot in person
