Lighting Equipment
This is the equipment we have for lighting the dance floor.
It is all DMX controlled.
DMX Controllers
- ADJ DJ WMX1 Controller - a powerful, compact standalone DMX controller that is used to control lights in the dance area
- Our DMX Setup page has setup details.
- Manufacturer's home page
- Visit wolfmix.com/activate for activation and help getting started
- ADJ Airstream Bridge (plus iPad to control it) - An older device that works reasonably well as a simple, backup DMX controller
DMX controlled lights
- 6 (six) ADJ 7P HEX IP with 3pin DMX plugs and Neutrik True1 for power - daisy chainable
- 10 (ten) ADJ 7P HEX IP with 5pin DMX plugs and Neutrik True1 for power- daisy chainable
- 4 (four) ADJ Saber Spot RGBW LED Pinspot with 3pin DMX plugs and Neutrik PowerCon for power - daisy chainable
- 8 (eight) DJXFLI 120W Moving Head DJ Lights (cheap amazon random stuff) with 3pin DMX and Neutrik PowerCon for power - not daisy chainable
Power cables

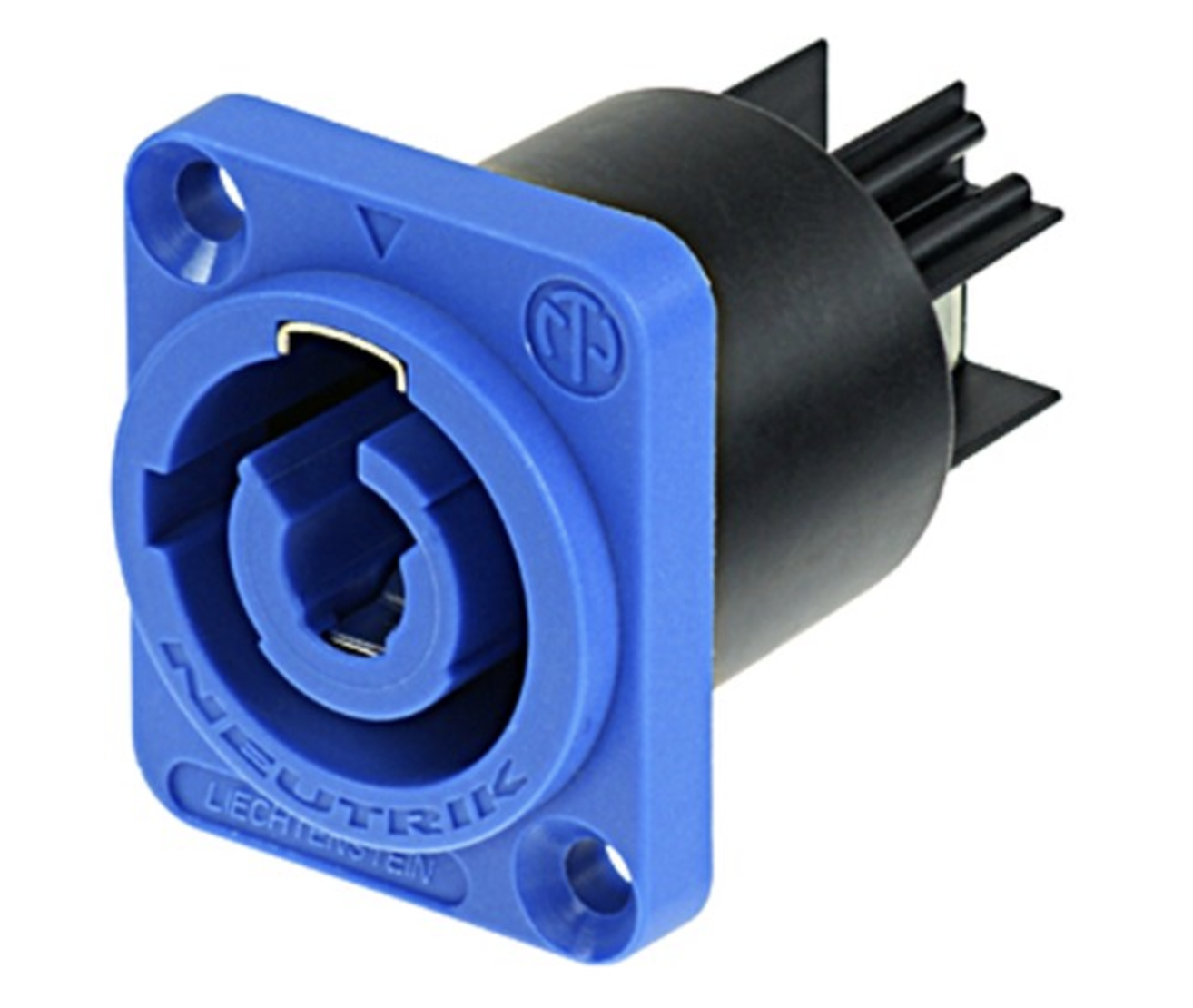

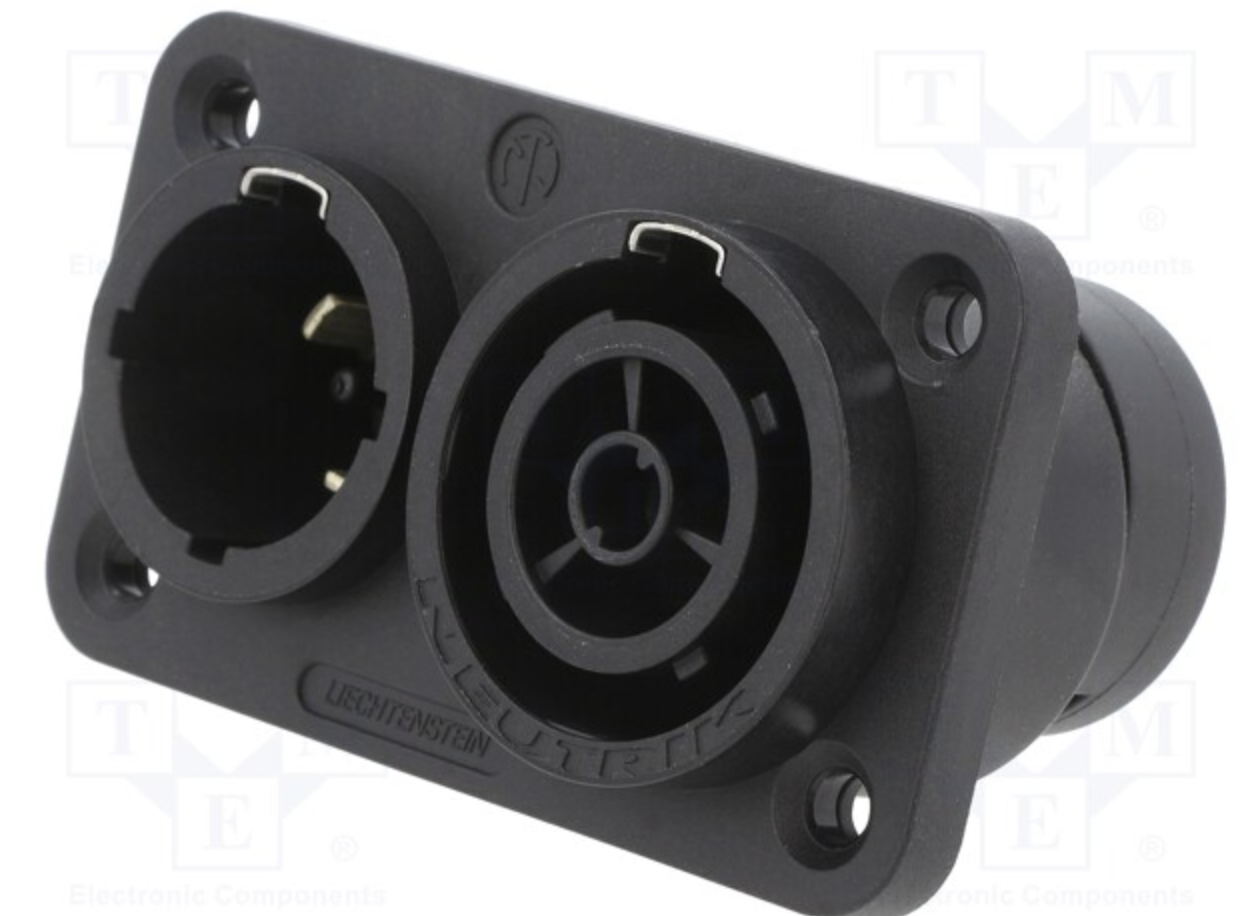

Note there are two kinds. Neutrik PowerCon is the old kind("blue and grey"), shown here on the left -- it is not designed to be unplugged under load. Neutrik True1 is the new kind which can be unplugged under load and is therefore safer.
Inventory
Description |
Length |
Inventory 2024 | New for 2025 |
Nema 5-15P to True1 (plugs PAR lights into normal outlet) | 6' | 16 | 0 |
True1 Daisy Chain (plug one PAR light into neighbor) | 10' | 0 | 5 |
True1 Daisy Chain (plug one PAR light into neighbor) | 15' | 7 | 0 |
True1 Daisy Chain (plug one PAR light into neighbor) | 25' | 6 | 0 |
Nema 5-15P to PowerCon (plug spots and moving heads into power) | 6' (?) | 12 (?) | 0 |
PowerCon Daisy Chain (plug one spot into neighbor) | 6' | 0 | 2 |
Nema 5-15R to PowerCon (plug DMX TX and RX into PinSpot) |
1' | 0 | 2 |
DMX cables
DMX cables come in 5-pin and 3-pin variations. Note that ten of our PAR lights use 5-pin and everything else is 3-pin.
Did you know - DMX cables, used for lighting control, look the same as XLR cables, used for speakers, but they have a different impedance, so don't mix them up.
The last "output" in a chain of DMX cables must have a terminator on it.
Description |
Length |
Inventory 2024 | New for 2025 |
3-pin DMX | 6.5' | 0 | 13 |
3-pin DMX | 10' | 8 | |
3-pin DMX | 15' | 3 | |
3-pin DMX | 25' | 15 | |
3-pin DMX Terminator | 0 | 2 | |
5-pin DMX | 6.5' | 0 | 7 |
5-pin DMX | 15' | 8 | |
5-pin DMX | 25' | 9 | |
5-pin DMX | 50' | 4 | |
5-pin DMX Terminator | 0 | 2 | |
3-pin F to 5-pin M adapter | 6 | ||
3-pin M to 5-pin F adapter | 6 |
